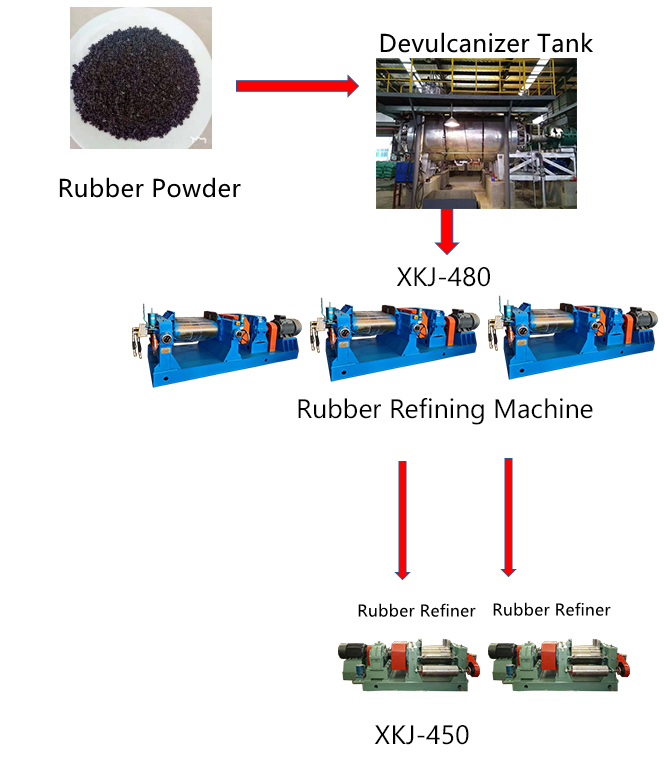

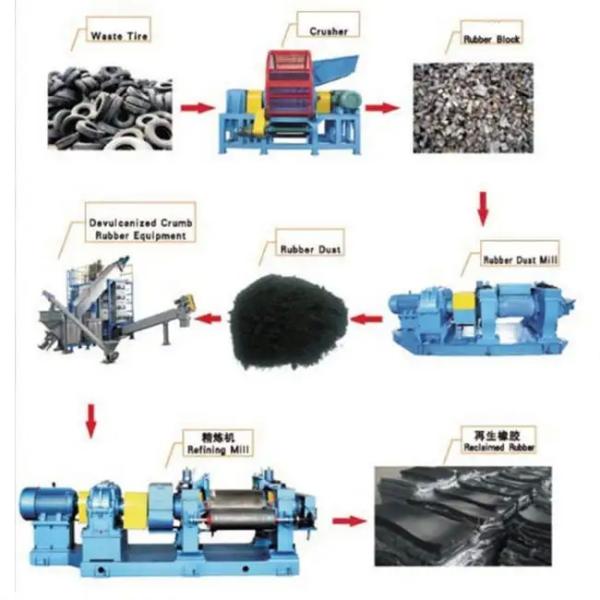

Rubber Refiner is rolling after desulfurization rubber powder,
change the physical form, and remove hard impurities
contained in the reclaimed rubber. Before and after the roll
surface is smooth, like a waist drum. Refining machine during
operation, It can be hard rubber impurities from the roller center
to both ends. Impurities
gathered at the edge of the roller, Then use knife remove to
impurities on the edge of roller. Roll adopts the vanadium titanium
alloy chilled cast iron, the surface is hard wearresisting, inner
cavity machining,
the roll surface temperature uniformity. The machine is equipped
with an emergency brake, When emergency occurs, pull the pull rod,
the machine immediately brake,
safe and reliable. Driving system consists of NGW hardened tooth
surface reducer, compact structure, low noise, high efficiency,
longservice life.
Brief desctription: 1. rollers,chilled cast iron 2. Water cooling
system 3. hardened reducer ,bearing bush 4. welded or casting base
5. HS of rollers:68-72
Features:
1. Rollers: the roller adopts chilled cast iron alloy (LTG-H) with
68-72 HS ,after quenching and precision processing with long
service life,
so the surface is hard and wearable;it is harder than others the
commom is 72HS.
2. Emergency Stop Device:The machine is also equipped with
emergency stop buttons or emergency pull rod. When an emergency
happens,
just press the emergency button or pull the pull rod,the machine
will stop immediately. It is safe and reliable;
3.Motors: We always use OMRON,SIMENS ect brand electric parts or
you can choice the ordinary brand.all the motor is high quality and
effiency,save energy,low noise,small vibration.
4. Overload: This open mixing mill has overload protection devices,
Machine will be stopped automatically, if overloaded;
5. Gear Box:The transmission system adopts hardened reducer,which
has a compact structure with higher transmission efficiency,lower
noise
and longer service life(ZQ reducer and planetary reducer is
optional);
6. Bearing Bush:Double Row Spherical Roller Bearing can save energy
by 20-30%(Nylon Bushing and Brass Bush is optional);
7. Structure:The base and frame are welded and treated by annealing
for stress relieving;
8. Sealing Device:The seal structure with special design can
eliminate the leaking phenomenon of lubricating oil;
9.Cooling system:circulation of steam and tap water can be through
rollers to control the temperature
10.Safe Electrical Parts: All electrical connections are safe:short
circuit is not possible by any means.
