    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press

    Ask Lasest Price
    Brand Name : HUALONG
    Certification : CE ISO
    Supply Ability : 10 Set/Sets per Month
    Price : $3,500.00 - $15,000.00/sets
    Model Number : XLB
    • Product Details
    • Company Profile

    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press

    Rubber Hydraulic Vulcanizing Press Other Rubber Processing Machinery Rubber Press Machine
    Laboratory use Rubber Vulcanizing Press Machine: 100T
    1. Pressure : 100T
    2. Plate size: 400*400mm
    3. Working Layer: 2 working layers
    4. Structure: column type
    5. Daylight gap: 125mm
    6. Piston stroke: 250mm
    7. Control mode: PLC automatic control
    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press
    Accept customized requirements and offer free technical support.
    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press
    Type
    XLB240×240×2
    XLB350×350×2
    XLB400×400×2
    XLB500×500×2
    XLB600×600×2/4
    XLB700×700×2
    XLB750×850×2/4
    XLB900×900×2Q
    Total pressure (MN)
    0.15
    0.25
    0.5
    0.63
    1.00
    1.20
    1.60
    2.00
    Plate distance(mm)
    125
    125
    125
    125
    125
    125
    200
    300
    Working layer number
    2
    2
    2
    2
    2-4
    2
    2-4
    2
    Unit area pressure of hot plate(Mpa)
    2.60
    2.04
    3.13
    2.52
    2.77
    2.45
    2.51
    2.47
    Plunger stroke(mm)
    250
    250
    250
    250
    250/400
    250
    400
    400
    Heating mode
    electricity
    electricity
    electricity/steam
    electricity/steam
    electricity/steam
    steam
    electricity/steam
    steam
    Main motor power (KW)
    2.2
    2.2
    2.2
    2.2
    2.2
    2.2
    3
    5.5
    Overall dimension (L×W×H) (mm)
    1200×350×1300
    1400×480×1380
    1600×500×1480
    1750×600×1540
    1880×720×1680
    2000×850×1750
    2250×1200×2200
    1400×900×2400
    Frame form
    Post
    Post
    Post
    Post
    Post
    Post
    Frame
    Frame
    Related Products
    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press

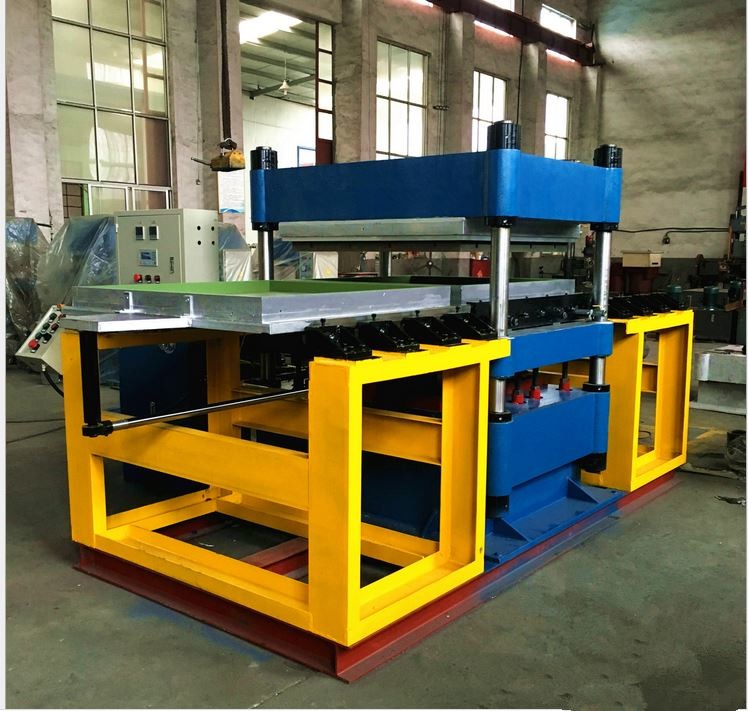

    Frame Type Rubber Vulcanizing Press Machine -------Russia and U.S customer
    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press
    Improved Rubber Car Mat Making Machine---South Africa customer
    1. open and out mold in 4 directions
    2. each time produce 4 pieces, high production efficiency
    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press

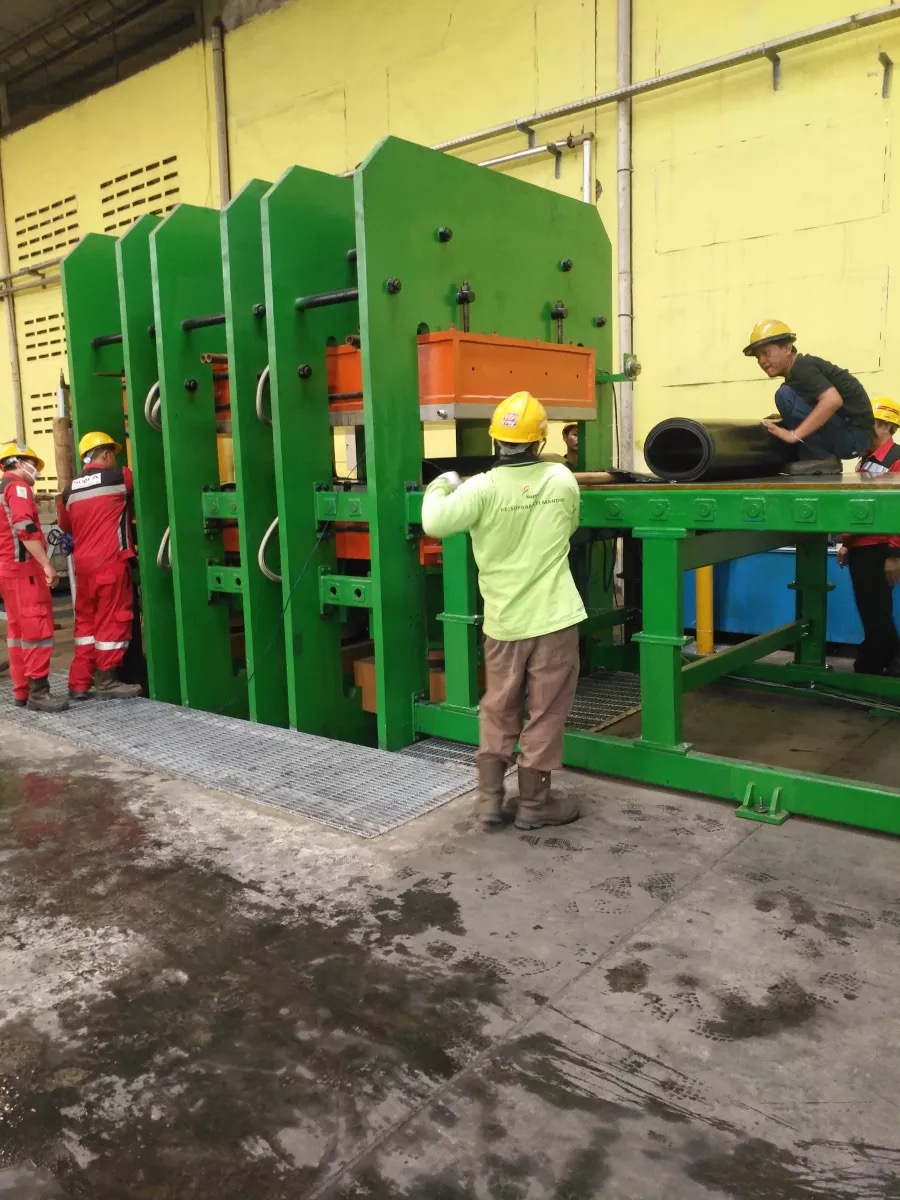

    Convery Belt Production Line--------Indonesia Customer

    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press

    Inner Tube Production Line---------------- India customer

    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press
    Laboratory 100T Rubber Vulcanizing Press Column Vulcanising Press

    QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
    manufacturing for rubber machine and laminating machine.
    As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,

    The company is one of the largest private enterprises engaging in professional produce rubber machine .
    We 8 meters gantry type milling machine,
    TK6913B CNC boring and milling machine
    TPX6213 floor boring
    TPX6113 milling and boring machine
    Vertical machining center
    CY-K630 CNC lathe
    2.5 Meters vertical lathe and other large advanced processing equipment
    We mainly produce following machinery.
    Radial tire equipment
    XK-660 Rubber open mixing mill
    42 to 65.5 inch double mold vulcanizing machine
    75-105 inch single mold vulcanizing machine
    Internal mixer series, Rubber mixing mill series, Extrusion and filter series
    Tyre tube, flap, inner tube plate vulcanizing machine
    Waste tire recycling line
    Rubber reclaim sheet line and so on,
    We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
    Our company always follows the market concept of “Market demand first , Customer first.
    Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
