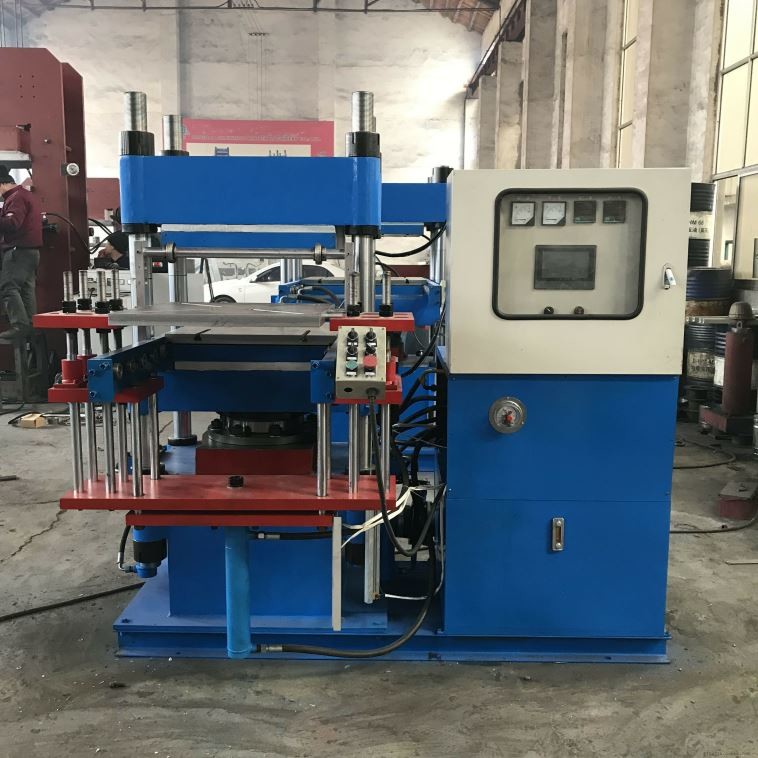

Rubber Slippers Making Machine, rubber moulding machine
Rubber Vulcanizing Press Machine, Rubber Product Making Machine,
Rubber Vulcanizer
1. Application:
This machine is of small plate series vulcanizing machine, mainly
used for rubber vulcanization, generally USES the pillar ,
compact structure, nice appearance, mould clamping force is big,
each station on the template can heat 180 high temperature
(adjustable), lower plate can be temperature control in room
temperature condition, form effective temperature difference;
This machine with its unique double temperature station structure and
high pressure characteristic adapted to all kinds of reflective material products such as trademark, pressing qualitative, etc.
2. Main Parameter
| Machine type | XLB-240×240×2 | XLB-350 ×350×2 | XLB-400 ×400×2 | XLB-500 ×500×2 | XLB-600 ×600×2/4 |
| Total pressure (MN) | 0.15 | 0.25 | 0.50 | 0.63 | 1.00 |
| Plate clearance(mm) | 125 | 125 | 125 | 125 | 125 |
| Plate size(mm) | 240×240 | 350×350 | 400×400 | 500*500 | 600×600 |
| Working layer number | 2 | 2 | 2 | 2 | 2 |
| Unit area pressure of hot plate (Mpa) | 2.6 | 2.04 | 3.13 | 2..31 | 2..77 |
| Piston stroke(mm) | 250 | 250 | 250 | 400 | 250/400 |
| Heating mode | electricity | electricity | electricity | Electricity/ steam/oil | Electricity/ steam/oil |
| Main motor power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Size(L*W*H) mm | 1200*350*1300 | 1400*480*1380 | 1600*480*1480 | 1780*600*1540 | 1780*600*1540 |
| Frame form | Post | Post | Post | Post | Post |
3.company introduction
QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have
employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than
50000 square meters, with a total assets of more than USD
100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in
professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing
equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and
filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber
machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand
first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good
reputation in the world market.
