    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment

    Ask Lasest Price
    Brand Name : HUALONG
    Model Number : LP-800,LP-900, LP-1200
    Certification : CE ISO
    Supply Ability : 10 Set/Sets per Month
    Price : $50,000.00/sets >=1 sets
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment

    Fully Automatic Rubber Recycling Machine Waste Tyre Recycling Line

    Features
    1) Iron/steel removing ratio>99.5%, fiber removing ratio>98%.
    2) Adopt automatic control system for whole line, reduce labor cost.
    3) No sewage and waste gas discharge, environment protection.
    4) Available capacity range of our tyre recycling lines at present: 400~3000kg/h.
    5) Available finial rubber powder size: 20~120mesh.

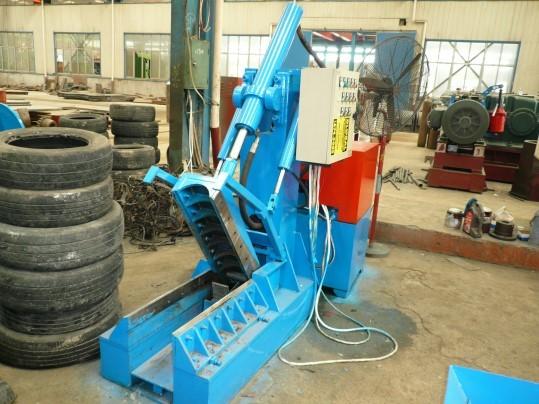

    Tire wire draw machine
    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment
    Model1200Y
    Motor Power (kw)16
    Overall Dimensions (L×W×H)6200×900×1700
    Weight (T)3
    Capacity (tires/h)60-80
    Tire Cutter
    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment

    Specifications

    1) Overall size(L×W×H): 2080×1000×2130mm

    2) Qty. of cutter: 4pieces

    3)Cutter stroke: nearly 600mm

    4) Cylinder pressure: nearly 12T

    5) Working oil pressure: 6.3Mpa

    6) Oil pump: Flow 40 L/mi, pressure 6.3Mpa

    7) Working oil grade: No. 32 mechanical oil

    8) Motor model: Y132M2-6, power: 7.5---11kW

    Tire Shredder
    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment
    Type1200
    Quantity of cutter head24
    Dimension of cutter head560*60
    Size of charge-in(mm)≤1200
    Size of charge-out(mm)50-60
    Handling Capacity (t/h)2-3
    Motor Power (kw)45*2
    Dimension(m)6×2.8×3.7
    Weight (T)16
    RUBBER SHREDDER BLADE
    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment
    All tools are CNC machined,25X50 is the effective length of the box,This bearing seat is cast steel or forged, rough machining is completed on welding, machining in a single box, and then the entire box is assembled for the final finishing product.

    Type


    Technical parameter


    XKP-560

    Front roll diameter(mm)560(groove roller)
    Rear roll diameter(mm)510(groove roller)
    Working length of rolls(mm)800
    Front roll surface speed(m/min)32
    Friction ratio1:1.30
    Max. nip (mm)15
    Motor power132
    Overall dimension: L×W×H(mm)5064×2284×1978
    Cast steel roller, Hard cylindrical gear, Bearing
    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment
    NAME
    Vibrating screen (big)Conveyor belt (magnetic separation) (big)
    Vibrating screen (small)Conveyor belt (magnetic separation) (small)
    Main conveyor belt (big)
    Parameter1100×8
    Impeller number8
    Impeller diameterF1100mm
    Speed of main shaft377(or 464)/min
    Power5.5kw
    Speed of feeder29/min
    Feeder power0.4kw
    Overall dimensionF1600xH3400(mm)
    Fine powder machine rubber grinder machine
    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment
    Parameter
    Rubber Grinder Machine
    Size of feed-in materials(mesh)
    ≥5
    Size of discharged materials(mesh)
    30-40
    40-60
    60-120
    Capacity(kg/h)
    140-180
    120-150
    100
    Power(kw)
    37
    Dimesion(mm)
    2100
    1700
    1650
    Weight(kg)
    2200
    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment
    Automated Rubber Powder Production Line 3000kg/H Tyre Recycling Equipment

    QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
    manufacturing for rubber machine and laminating machine.
    As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,

    The company is one of the largest private enterprises engaging in professional produce rubber machine .
    We 8 meters gantry type milling machine,
    TK6913B CNC boring and milling machine
    TPX6213 floor boring
    TPX6113 milling and boring machine
    Vertical machining center
    CY-K630 CNC lathe
    2.5 Meters vertical lathe and other large advanced processing equipment
    We mainly produce following machinery.
    Radial tire equipment
    XK-660 Rubber open mixing mill
    42 to 65.5 inch double mold vulcanizing machine
    75-105 inch single mold vulcanizing machine
    Internal mixer series, Rubber mixing mill series, Extrusion and filter series
    Tyre tube, flap, inner tube plate vulcanizing machine
    Waste tire recycling line
    Rubber reclaim sheet line and so on,
    We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
    Our company always follows the market concept of “Market demand first , Customer first.
    Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
